UNRIVALLED QUALITY AND MAINTAINABILITY

Each substation is fully ASTA Certified and our dedicated switchgear engineers expertly install and commission both the HV and LV sides, ensuring all systems – including life safety interlocks – offer the optimum in performance. MV options are made up from compact ring main units (RMU), circuit breakers or disconnecting switches.

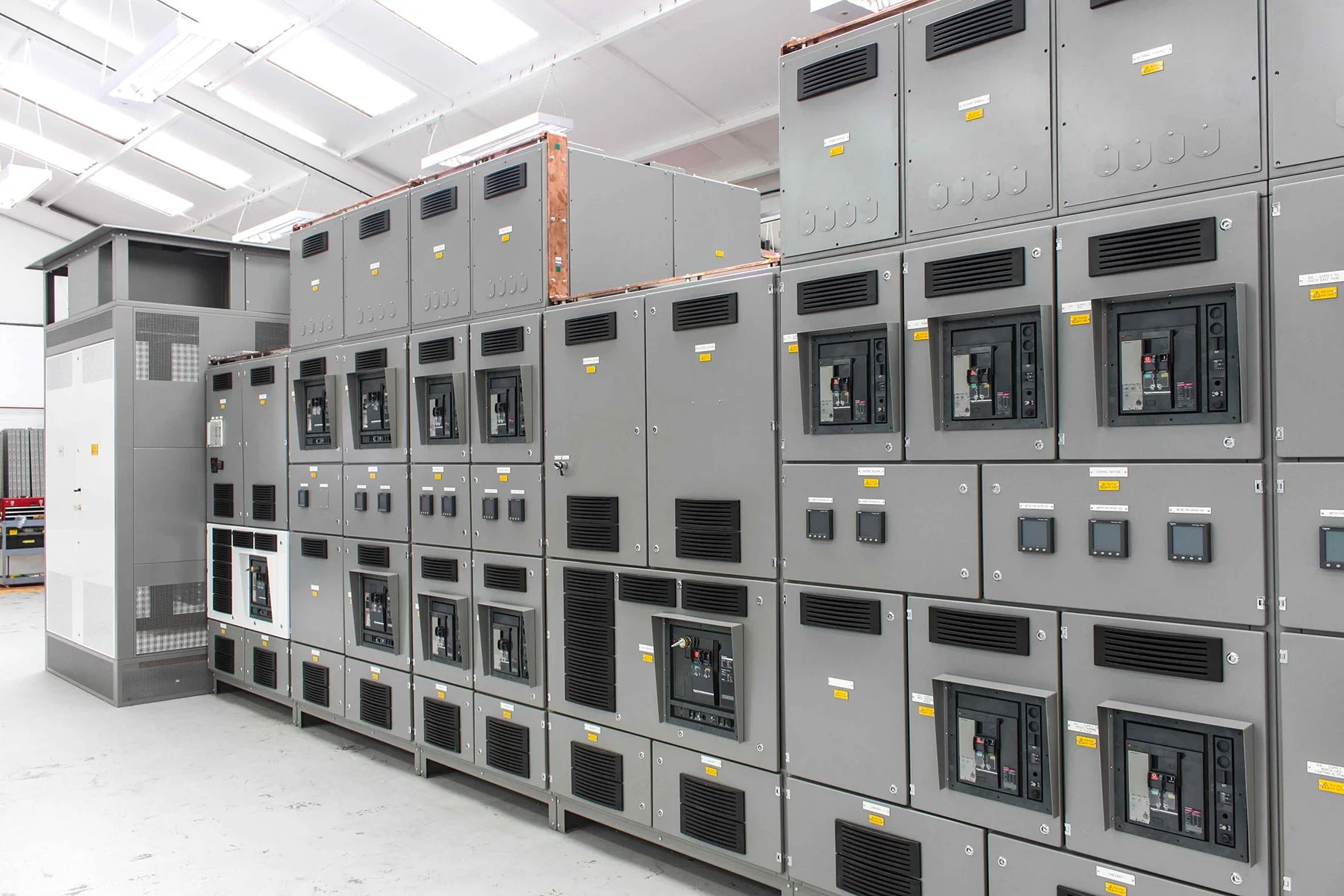

Our substations incorporate a choice of transformers as well as leading MV switchgear and our own custom-built LV distribution products. Each unit is tailored to your needs and offers the engineering excellence you would expect from Anord Mardix.



KEY FEATURES

  • MV incomer options – ring main units (RMU), HV circuit breakers or MV switch disconnectors
  • Top or bottom HV cable connections
  • Transformer options – cast resin or fluid-filled transformers
  • Air cooled or forced ventilation Transformer options for increased output
  • Reduced footprint designs
  • Fully welded steel enclosures
  • Cladded steel busbar chamber allowing efficient thermal imaging surveys
  • Remote mounting of transformer and LV Switchgear

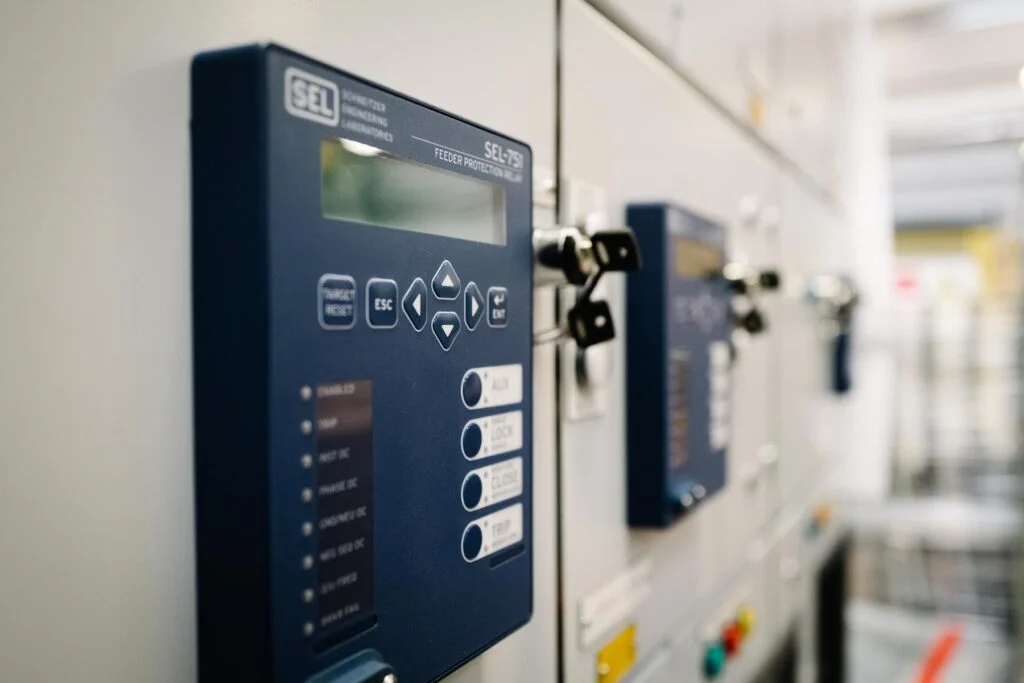

  • Incorporation of life safety protection relays and interlocks
  • Incorporation of in-house PLC programming (dual redundancy)

TAILORED TO YOUR NEEDS

  • Flexible choice and power ratings with no fuss installation
  • Cladded steel busbar chambers allow efficient thermal imaging surveys
  • In-house 3D design and visualisation ensures that all connections between transformer and LV switchboard feeder busbars are exact. Whether transformers are delivered and installed on-site, or factory fitted on custom engineered steel platforms, we guarantee a no-fuss connection.
  • Our relationships with major transformer manufacturers and our complete in-house project management means Anord Mardix is best placed to procure and negotiate transformer delivery dates to meet your tightest deadlines.
  • Monitoring and ongoing servicing, including thermal investigation, fluid sampling and fluid replacement, is delivered as part of our package.

SPECIFICATIONS

MV/LV Transformer Ratings Up to 4.5 MVA
Transformer Primary Voltage Up to 33kV
LV Busbar System Current Rating Up to  6300A (AN – No Fans Required)
LV Busbar System Short Circuit Rating Up to 100kA/1s
Low Voltage Ratings 400V / 690V
Construction Separation Up to Form 4B Type 7
Cable Access Top / Bottom, Front or Rear
Ingress Protection Up to IP 31
Panel Colour Available in all RAL or BS colours
